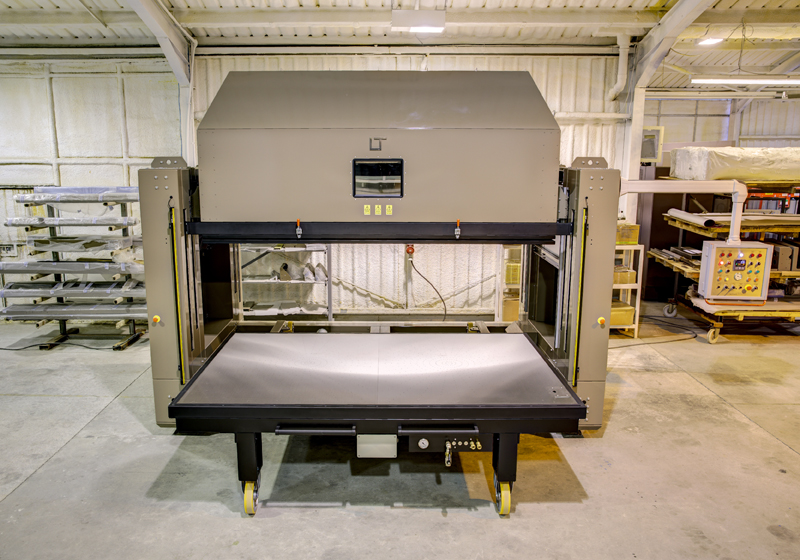

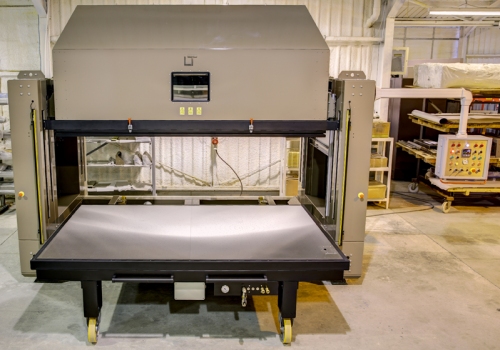

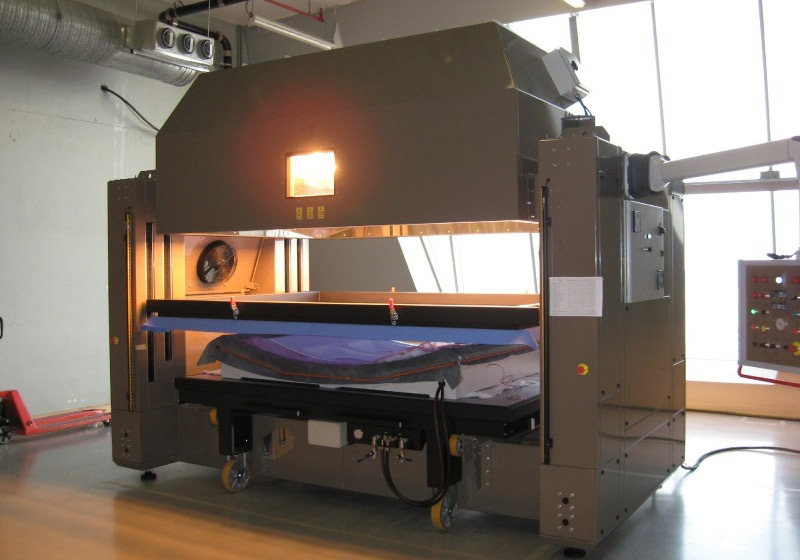

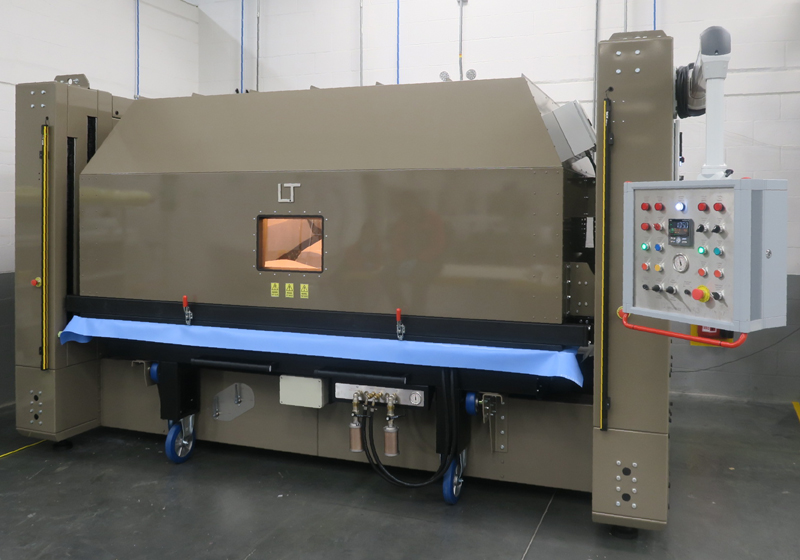

HVA 3

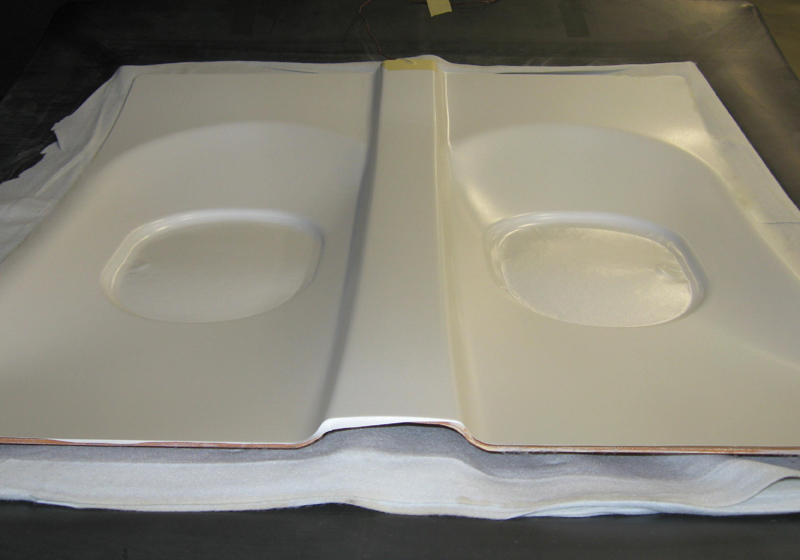

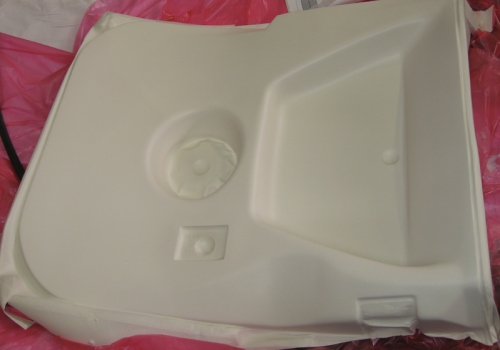

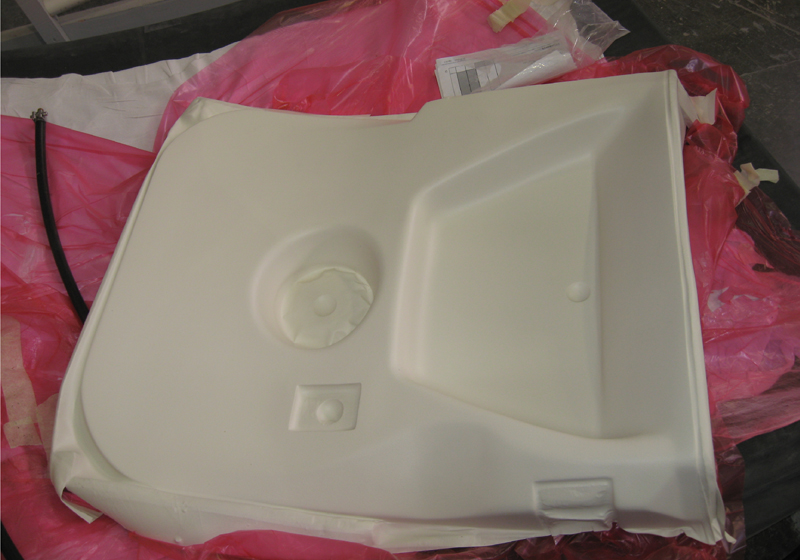

Our HVA 3 machine is ideal for applying engineered laminates to aircraft interiors like sidewalls, ceilings, seating shells and more.

This machine comes pre-programmed for the following aircraft:

Boeing: 737, 747 (main & upper deck), 757, 767, 777 & 787

Airbus: A320 family, A330, A340, A350 & A380



Some features of the HVA 3 machine include:

  • Regional Jets and TurboProps
  • Automated control of heat and vacuum
  • Semi-automated control of machine movement
  • High-quality silicone membrane

Specifications

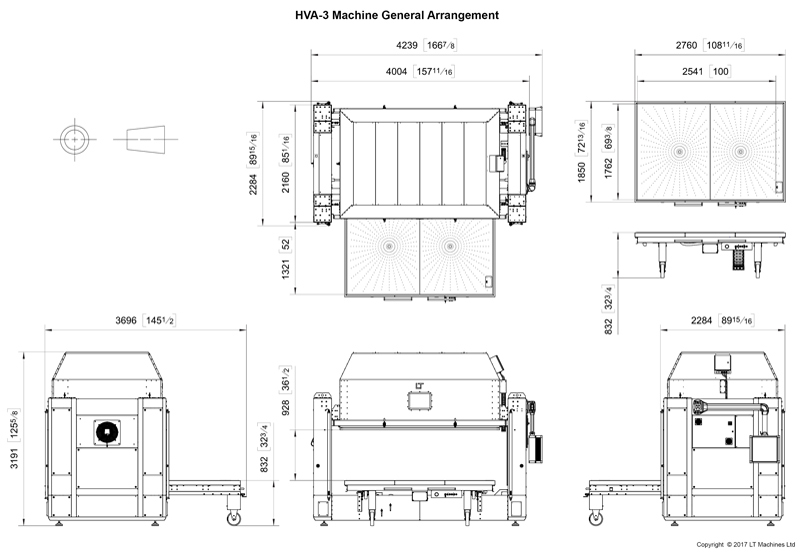

Dimensions
Bed Size 2760 x 1850 mm 109 x 73 inches
Working Area 2543 x 1762 mm 100 x 69 3/8 inches
Bed Height 832 mm 32 3/4 inches
Machine Footprint 5546 x 3712 mm 218 x 146 inches
Max. Machine Height 3191 mm 125 5/8 inches
Machine Weight 3200 kg 7054 lb
Max. Tool Weight 800 kg 1764 lb
Max. Temperature 125 ºC 257 ºF
Max. Vacuum 0.948 bar 28 inHg
Features
Pulled-Out Bed Yes
Powered-Out Bed No
Twin Bed No
Heat Control Programmable
Fan Cooling Programmable
Vacuum Control Programmable
Adjustable Height Bulbs Yes
2 Channel Data Logger Optional
Chart Recorder Optional

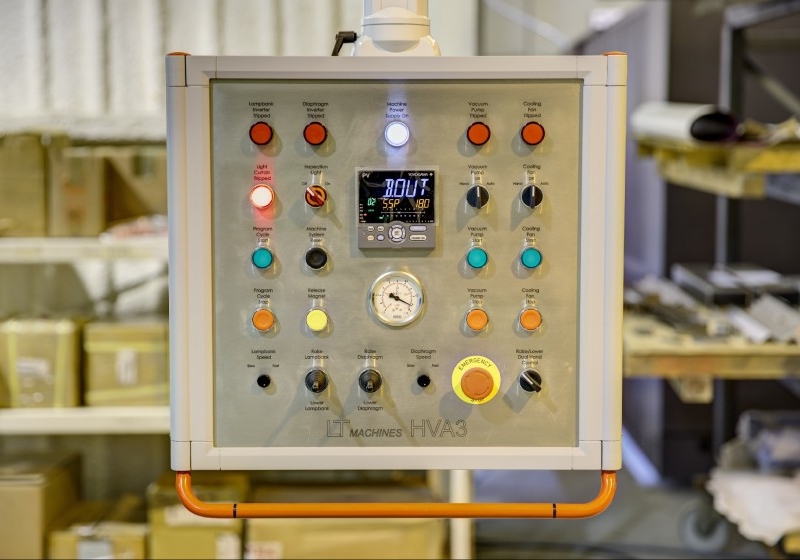

Control
Data Recording Optional
Programs Stored 30
Ethernet No
Thermocouples Type T - Class 1
Pyrometers Optional
Power Supply AC 3 Phase + Neutral + Earth
Voltage 380 / 440 / 480
Full Load Current 40 Amps
Show Metric Imperial Values
