HDF 4

Need Training?
View Machinery Specification
Enquire
  • HVA 4 mechanics
  • Single bed machine
  • Thermally stable area: 3280 x 2010 mm (129 x 79 inches)
  • Max part height: 410mm (16 inches)
  • Fast infra-red emitters, which very accurately control the heating process and provide uniform heating without creating hotspots
  • Multiple heating zones
  • Clean room compliant
  • Low maintenance
  • Strong construction, reliable performance and long life
  • Two-year warranty as standard
  • CE certificated
View the HDF gallery

Specifications

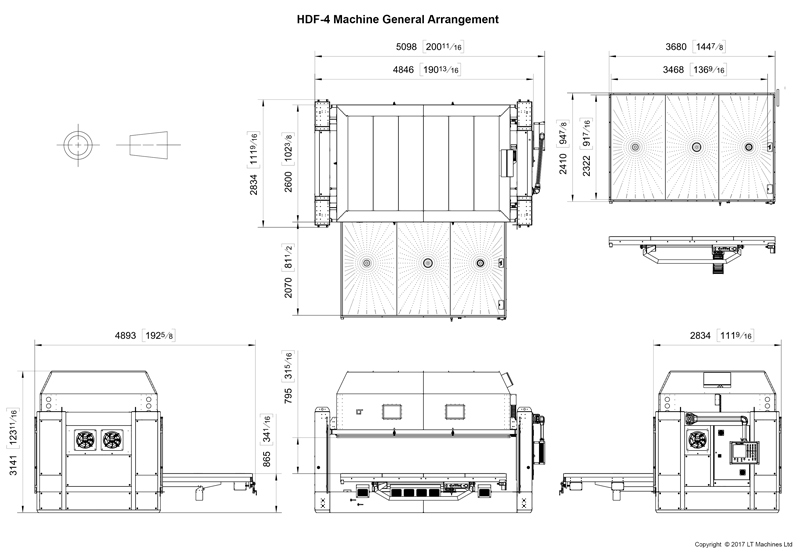

Dimensions
Bed Size 3680 x 2410 mm 145 x 95 inches
Thermally Stable Area 3280 x 2010 mm 129 x 79 inches
Bed Height 925 mm 36 1/2 inches
Machine Footprint 6516 x 4919 mm 256 1/2 x 194 inches
Max. Machine Height 3201 mm 126 inches
Machine Weight 5000 Kg 11023 lb
Max. Tool Weight 800 Kg 1764 lb
Max. Temperature 125 ºC 257 ºF
Max. Vacuum 0.948 bar 28 inHg
Features
Pulled Out Bed No
Powered Out Bed Yes
Twin Bed Optional
Heat Control Programmable
Fan Cooling Programmable
Vacuum Control Programmable
Adjustable Height Bulbs Yes
Chart Recorder Yes
Control
Data Recording Yes
Programs Stored 30 internally
Ethernet Yes
Thermocouples Type T - Class 1
Pyrometers Yes
Power Supply AC 3 Phase + Neutral + Earth
Voltage 380 / 440 / 480
Full Load Current 63 Amps
Show Metric Imperial Values
