HDF 6

Need Training?
View Machinery Specification
Enquire
  • Single or Twin bed machine
  • Thermally stable area: 6100 x 1220 mm (240 x 48 inches)
  • Max part height: 410mm (16 inches)
  • Fast Infra-red emitters, which very accurately control the heating process and provide uniform heating without creating hotspots
  • Multiple heating zones
  • Clean room compliant
  • Low maintenance
  • Strong construction, reliable performance and long life
  • Two-year warranty as standard
  • CE certificated
View the HDF gallery

Specifications

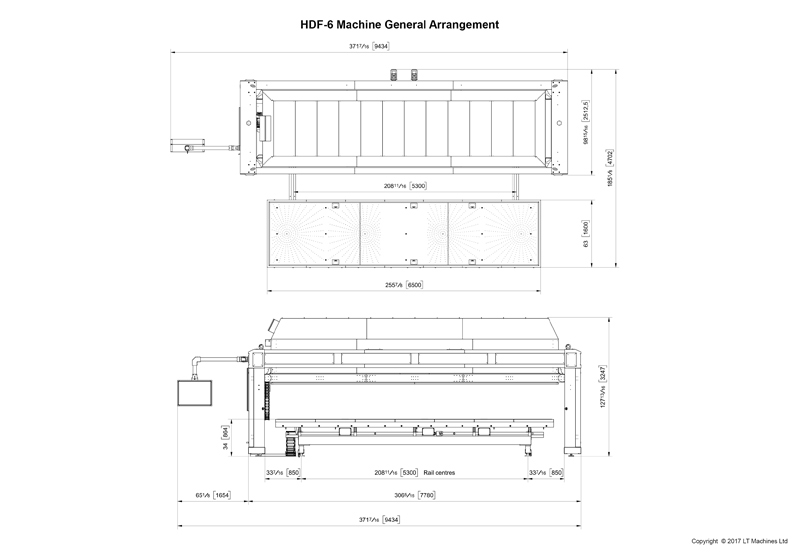

Dimensions
Bed Size 6500 x 1600 mm 256 x 63 inches
Thermally Stable Area 6100 x 1200 mm 240 x 47 inches
Bed Height 883 mm 34 3/4 inches
Machine Footprint 9443 x 4460 mm 372 x 176 inches
Max. Machine Height 3245 mm 127 3/4 inches
Machine Weight 6000 Kg 13330 lb
Max. Tool Weight 1360 Kg 3000 lb
Max. Temperature 125 ºC 257 ºF
Max. Vacuum 0.948 bar 28 inHg
Features
Pulled Out Bed No
Powered Out Bed Yes
Twin Bed Optional
Heat Control Programmable
Fan Cooling Programmable
Vacuum Control Programmable
Adjustable Height Bulbs Yes
Chart Recorder Yes

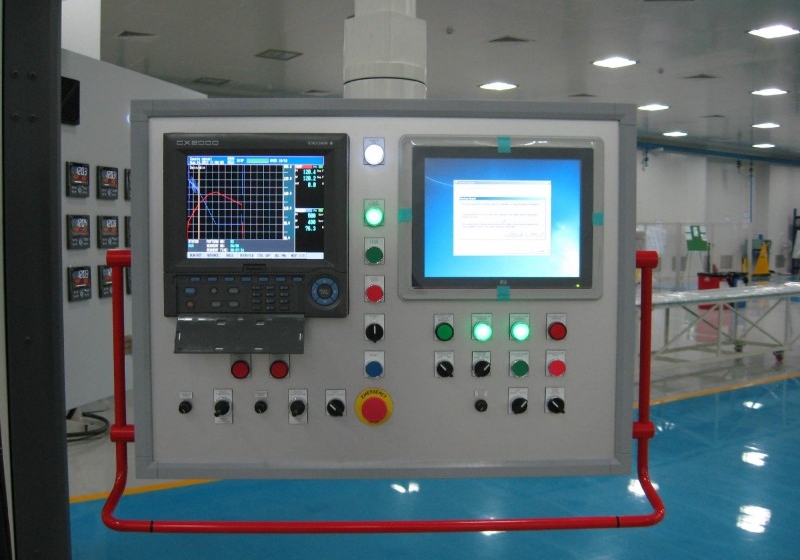

Control
Data Recording Yes
Programs Stored 30 internally
Ethernet Yes
Thermocouples Type T - Class 1
Pyrometers Yes
Power Supply AC 3 Phase + Neutral + Earth
Voltage 380 / 440 / 480
Full Load Current 100 Amps
Show Metric Imperial Values
